High Flow Centrifugal Pump-SCS

The SCS series centrifugal pumps, featuring a single impeller, are capable of delivering high flow rates with smooth and non-pulsating performance. They can efficiently regulate flow over a wide range without causing harm to the pump.For optimal operation, it is recommended to use clean water or non-corrosive liquids containing small solid impurities. These pumps are well-suited for applications in flow irrigation systems used in gardening, agriculture, and industrial settings.

Pumps should be installed in a covered area, protected against the weather.

Features

.Economical, reliable and safe

.High flow rates

Application

.Industrial use

.Agricultural use

.Garden irrigation

Working conditions

.Maximum ambient temperature up to +40℃

.Maximum fluid temperature up to 80℃

.Maximum pressure up to 10 bar

Construction Materials

.Pump body：cast iron

.Motor housing：aluminum

.Motor：closed, externally ventilated

.Impeller：brass

.Insulation：B/F

.Duty：continuous rated

.Mechanical seal：steatite ceramic/metalized carbon

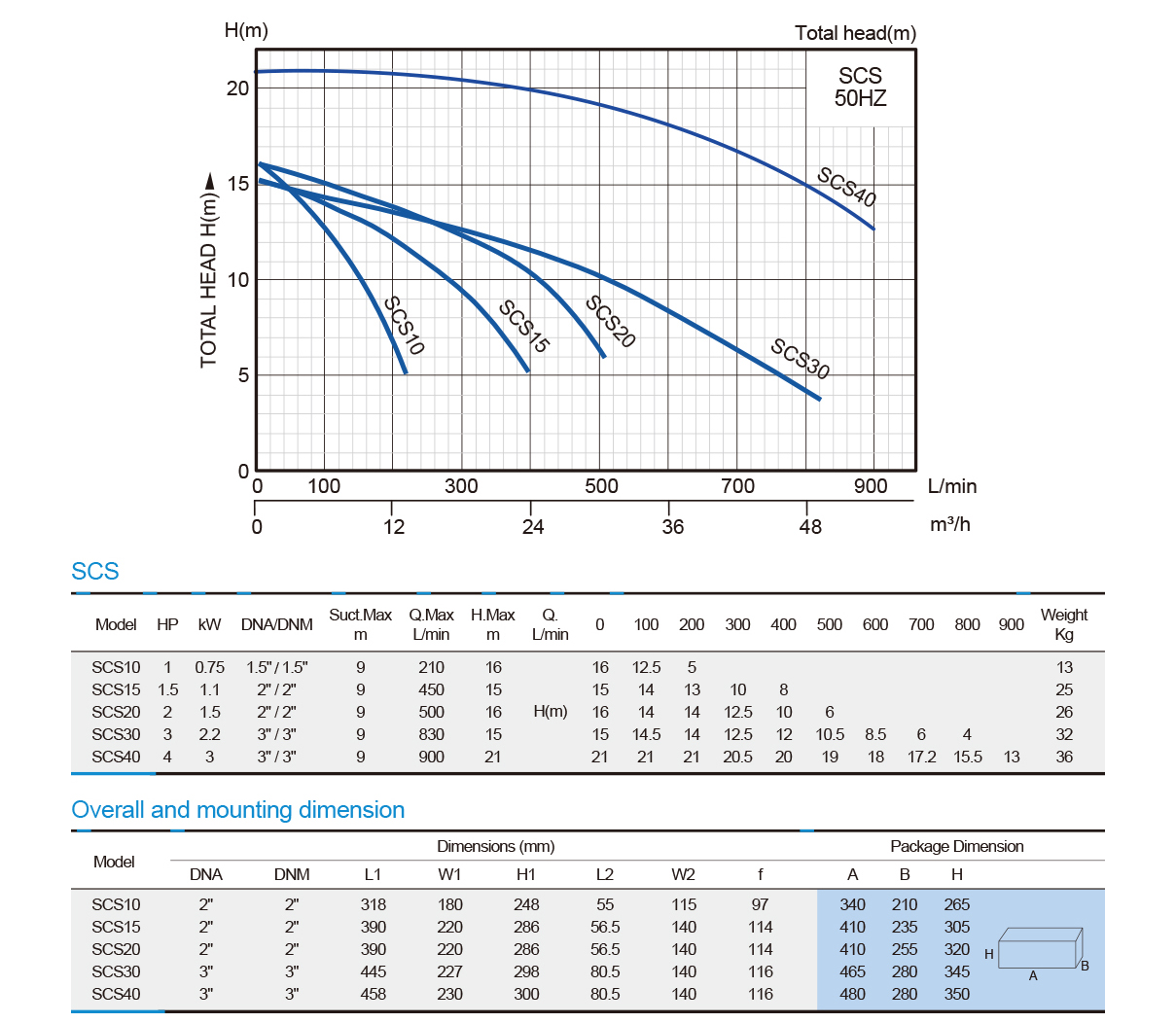

Performance Curve&Technical Data
