Automatic Booster Pump with Cover -PS130

The PS130 water pump is part of an Automatic Booster System, comprising a water pump, a sealed pressure tank, and a pressure switch. This system boasts a specially designed structure, enhancing both its appearance and performance. The pressure tank features a non-toxic rubber membrane, also known as a pressure vessel. Additionally, the PS130 water pump is equipped with a dust and sun-resistant plastic cover, ensuring greater durability.

Features

.Economical, reliable and safe

.Equipped with a dust and sun-resistant cover

.Complete with pressure switch and tank

Application

.Home use

.Sutomatic booster system

Working Conditions

.Maximum ambient temperature up to +40 ℃

.Maximum fluid temperature up to 80 ℃

.Maximum pressure up to 10 bar

Construction Materials

.Pump body：cast iron

.Motor housing：aluminum

.Impeller：brass

.Insulation：B/F

.Duty：continuous rated

.Mechanical Seal：steatite ceramic/metalized carbon

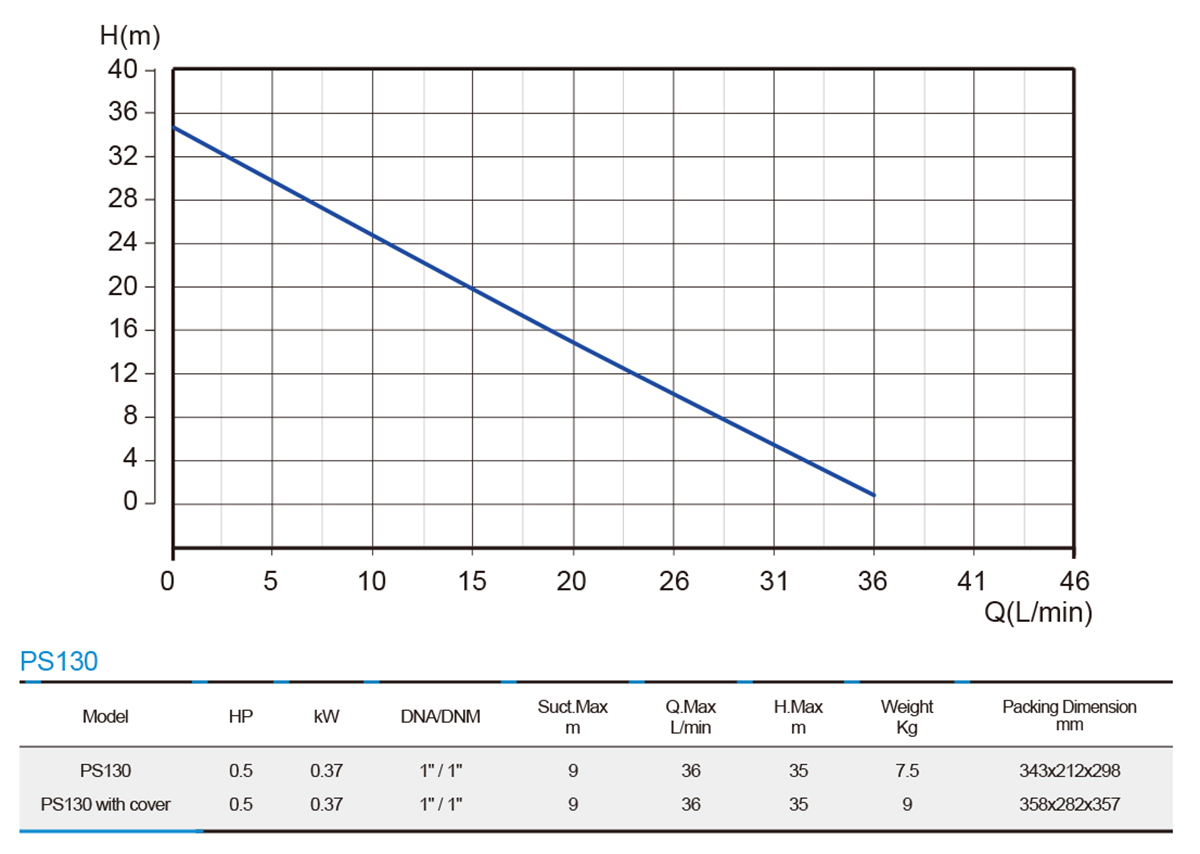

Performance Curve & Technical Data
