Multistage Pump

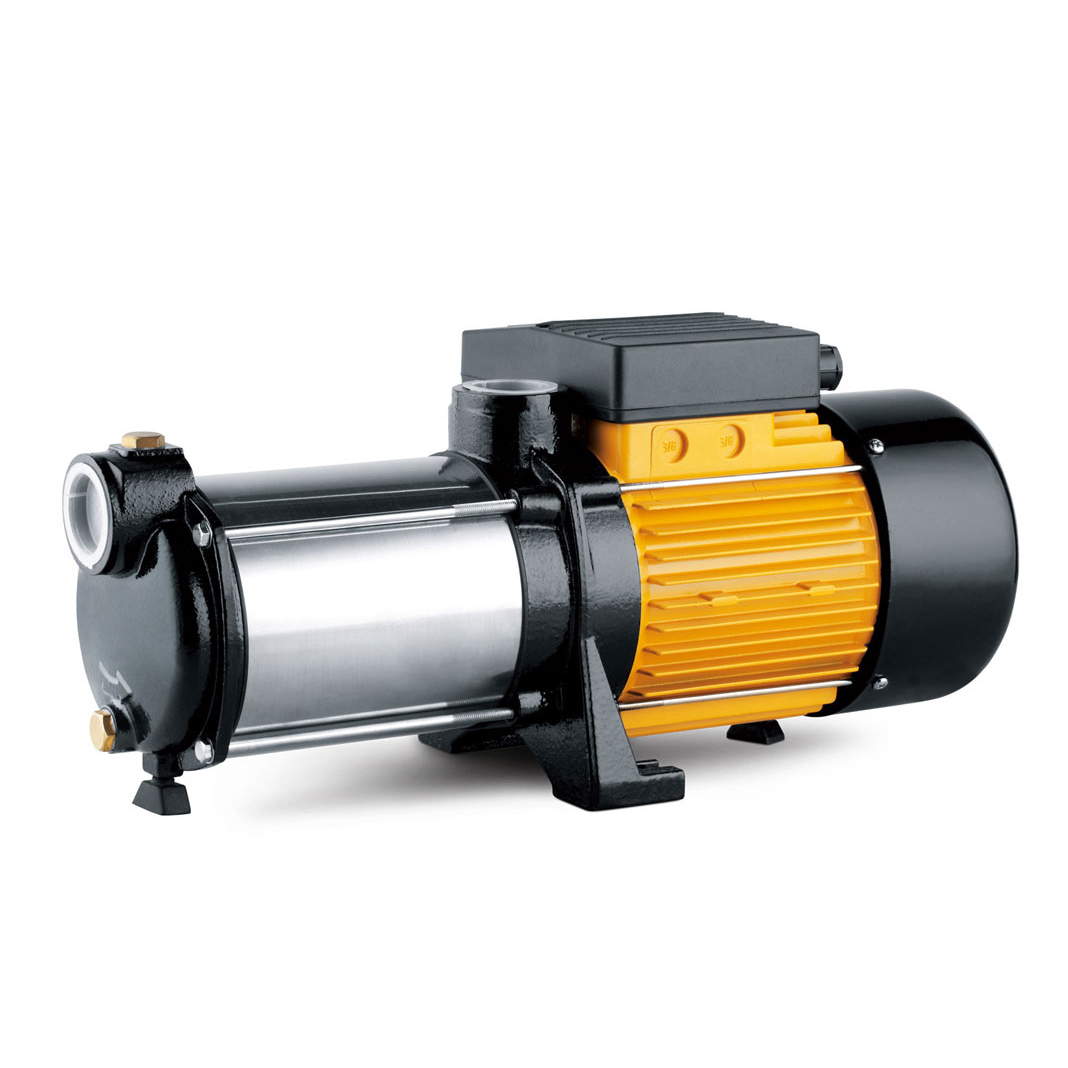

Horizontal Multistage Centrifugal Pump — MH

Capacity range:0~365 L/min

Max head range:22~130 m

Max working pressure:8~10 bar


Share:

Description

The MH series horizontal multistage pump stands as an industry leader, efficiently catering to diverse clean water pumping requirements. Boasting a compact design and operating with minimal noise, this pump is an optimal choice for applications such as water transfer, sprinkler systems, drip irrigation, and domestic water boosting. Its exceptional performance ensures reliable water pumping, while the space-saving configuration provides a sturdy and efficient solution for various needs. Whether used for irrigation, drip systems, or household water boosting, the MH Series delivers outstanding results in a compact and quietly efficient design.

Feature

.Self-priming up to 6 m

.Stainless steel housing and cataphoresis coating for anti-rust and durability

.Silent running and high efficiency performance

.Flow rates up to 365 L/min

.Head pressure up to 13 bar

.Muti-materials for different applications

.Dry-run protection for 1 phase

Application

.Water transfer

.Sprinkler or drip irrigation

.Domestic booster or booster sets

Working conditions

.Maximum ambient temperature up to +40 ℃

.Maximum fluid temperature up to 80 ℃

.Maximum pressure up to 10 bar

Construction Materials

.Pump body:stainless steel

.Motor housing:aluminum

.Motor:Closed, externally ventilated

.Diffuser: PPO

.Impeller:PPO/stainless steel

.Insulation:B/F

.Duty:continuous rated

.Mechanical seal:steatite ceramic/metalized carbon

Performance Curve & Technical Data

Horizontal Multistage Centrifugal Pump — MH

Horizontal Multistage Centrifugal Pump — MH

Horizontal Multistage Centrifugal Pump — MH

Horizontal Multistage Centrifugal Pump — MH
