Ensuring Safety and Reliability:The Importance of IP Grade and Insulation Class in Water Pumps

09. 26, 2023

When choosing a water pump, it's important to consider two important parameters: the IP (Ingress Protection) grade and the motor’s Insulation class. These two parameters may sound complex, but they play a crucial role in ensuring the safe and effective operation of your water pump.

Ensuring Safety and Reliability:The Importance of IP Grade and Insulation Class in Water Pumps

What is IP grade?

The IP grade measures how well-protected the pump is against dust and water ingress. It's indicated by a two-digit code, with the first digit representing protection against solid objects and the second digit indicating protection against liquids. For example, an IP rating of IP68 means the pump is completely dust-tight and can withstand long-term immersion in water, while an IP44 rating means it can protect against solid objects larger than 1mm and splashing water.

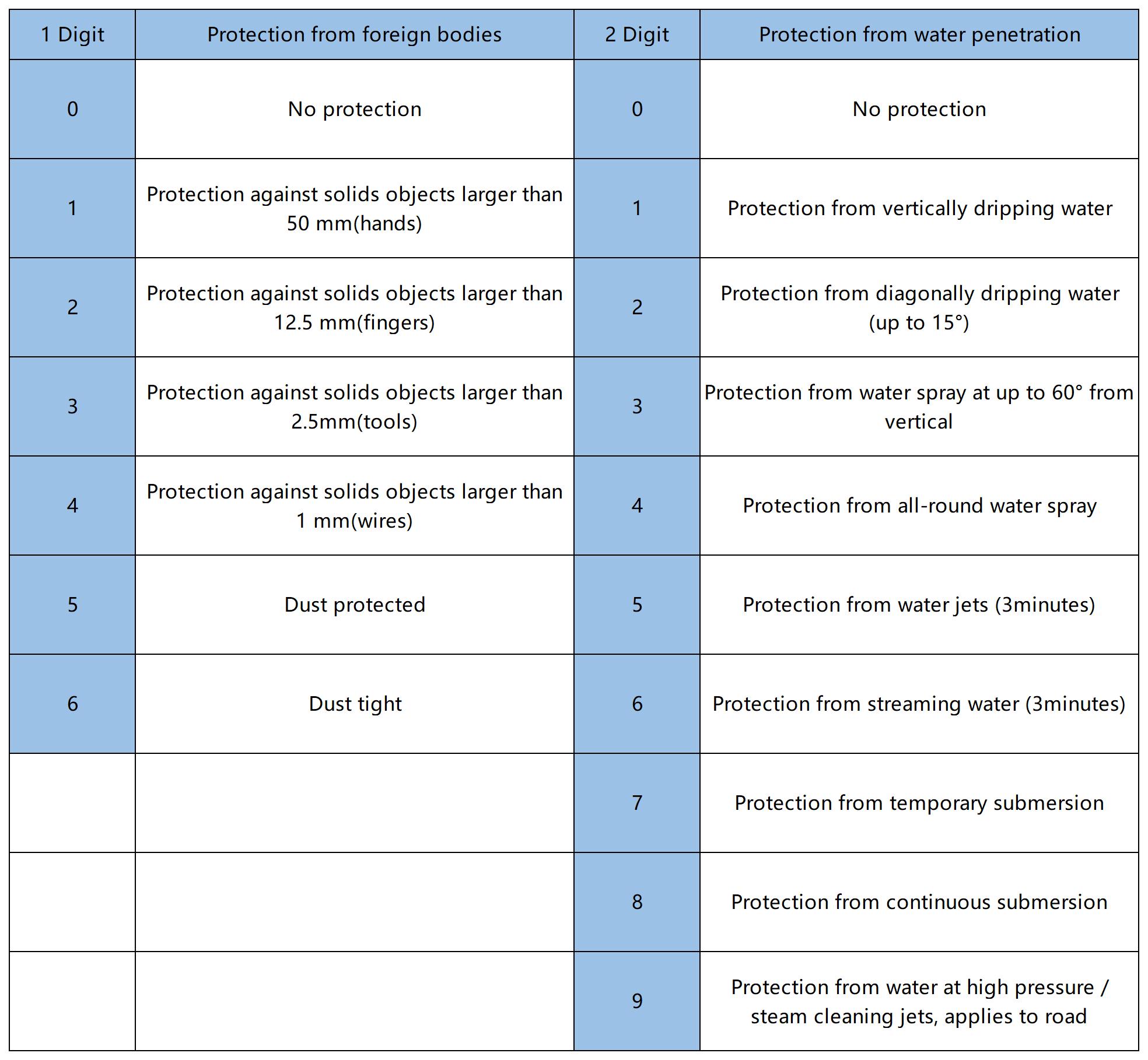

IP RATING EXPLAINATION

Ensuring Safety and Reliability:The Importance of IP Grade and Insulation Class in Water Pumps

Difference between IP and IPX

IPX is an internationally recognized waterproof rating certification system that is used to indicate the waterproof level of various instruments and equipment, and is one of the most common technical indicators.

Each IP waterproof rating test standard is different. We often see labeling levels such as IPX8, which means that there is no limit on the dustproof level. However, the absence of a limit does not mean that there is no dustproof capability.

Why is the IP Grade important?

It determines where the pump can be installed. If you're installing the pump in an area with a lot of dust or moisture, you'll need a higher IP rating to ensure it's protected against damage or failure.

What is Insulation class?

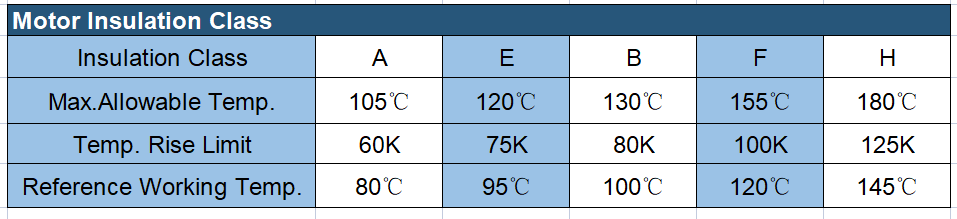

The insulation class refers to the ability of the insulation material used in the motor winding to resist heat. Generally, it is classified into five levels based on the heat resistance, ranging from A to H. Each insulation class has a maximum allowable temperature limit for the insulation material. If the temperature at the hottest point of the motor winding during operation exceeds the specified limit, the insulation of the winding can degrade, leading to a shorter lifespan for the motor. If the temperature exceeds the allowable limit by a large amount, the insulation can become damaged, causing the motor to burn out.

Ensuring Safety and Reliability:The Importance of IP Grade and Insulation Class in Water Pumps

Why is the insulation class important?

It determines the maximum temperature the motor can operate at without the risk of insulation failure. If the motor overheats, it can cause the insulation to break down, resulting in electrical shock or even a fire.

In summary, when selecting a water pump, it's important to consider the IP grade and insulation class. The IP grade determines the level of protection against dust and water, while the insulation class determines the maximum temperature that the motor can operate at. Choosing a pump with the appropriate IP grade and insulation class for your specific needs will ensure reliable and safe operation.
